Tech Talk: The 5 Levels of Drone Autonomy

Tech Talk: Untangling The 5 Levels of Drone Autonomy

27 min read · Created: 2019-03-07 · By Millie Radovic

How to identify the degree of drone autonomy? One of the most common phrases in our industry is “we manufacture autonomous drones”. But can companies with very different products claim they have autonomous drones, and both be right?

The simplest answer is, yes. These vast differences in the types of solutions that are described as autonomous are largely down to the fact that as there is no single authority determining those definitions, they are often free-flowing. Not only are definitions free-flowing but phrases like autonomy and automation are mistakenly presumed to be interchangeable in both the drone and car industries. (It doesn’t help that when we discuss levels of autonomy, we look at degrees of automation).

Automation

The use or introduction of automatic equipment in a manufacturing or other process or facility.
How automated a drone is always comes down to how much automatic equipment is involved and how much manual intervention it requires. An automated drone follows orders about destination and route but cannot make decisions.

Autonomy

Freedom from external control or influence; independence.
How autonomous a drone is must always be a measurement of how independent the platform and its workflow are. A truly autonomous drone would decide on destination and route as well as control in the air.

The best way to understand the autonomy of drones is as a spectrum. If autonomy is a measure of independence from external influence and the level of self-governing, then different platforms can be autonomous but on a different point in the autonomy spectrum. The key is to understand these different levels and what they look like in practice in the drone industry.

The 5 Levels of Drone Autonomy

Originally published: Mar. 2019

Level 0: No Automation

The pilot is in full control of every movement. Platforms are controlled 100% manually at all times.

What this looks like in practice: Drones for racing and model aircrafts.

Current Application Method: Racing (recreation).

Level 1 – Pilot Assistance

The pilot remains in control of the overall operation and safety of the vehicle. However, the drone can take over at least one vital function for a finite period of time. It has no sustained vehicle control and is never in control of both speed and direction of flight at the same time, but it can provide support for navigation and/or keep altitude and position.

What this looks like in practice: A hobby or prosumer drone which is GNSS-supported to stabilize flight, while all inputs in terms of heading, altitude and speed is done via manual input. This ranges from simple recreational photo or video footage to high-end asset inspections in the industry. At this level sense & avoid features are available to alert the pilot of the drones close proximity to obstacles – the avoid part, however, is up to the manual input of the pilot.

Current Application Methods: inspection & maintenance, localization & detection, photography & filming, protection & security, and monitoring.

Level 2 – Partial Automation

The pilot is still responsible for the safe operation of the vehicle and must be ready to take control of the drone should something happen. However, under certain conditions the drone is able to take over control in terms of heading, altitude and speed. The pilot is still fully in charge, including monitoring the air space, flight conditions and reacting in case of an emergency. Most manufacturers currently build drones at this level, where the platform can assist with navigation functions and allow the pilot to disengage from some of their tasks.

What this looks like in practice: A pre-programmed flight path is uploaded to the autopilot and the drone will start executing the task to fly along these transects after take-off. Today this is a common practice for mapping and surveying missions. Some drones with this level of autonomy have a built-in automated take-off and landing feature – this makes the drone handling easier but does not make it more autonomous.

Current Application Methods: mapping, surveying, spaying & seeding, and measuring.

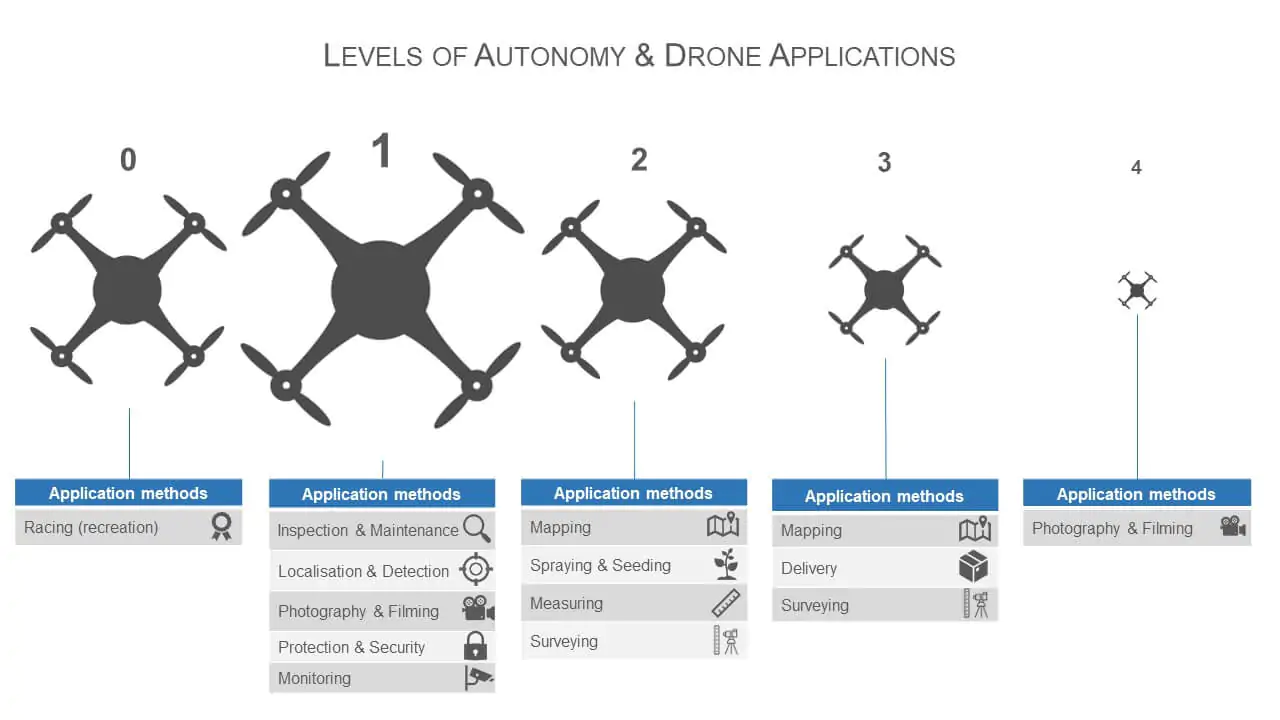

Drone Autonomy & Application Methods

Level 3 – Conditional Automation

Like at Level 2, the drone can fly itself, but the human pilot must still pay attention and be prepared to take over at any time. The drone notifies the pilot if intervention is needed, so s/he is the fall-back system. This level means that the drone can perform all functions “given certain conditions”.

What this looks like in practice: A drone flies along a pre-programmed flight path when on-board sensors detect an obstacle. After the detection (e.g. of a treetop in the flight path) the drone will stop and send an alarm of an object in close proximity to the pilot. The pilot then manually corrects the heading/altitude before the drone continues to fly along its pre-programmed path.

Current Application Methods: mapping, surveying and delivery.

Level 3+ – Automized Drone Deployment

Another way to measure the autonomy of a drone is to take into account its working environment. Some manufacturers have made advancements in the automation of drone deployment by building “fully automated drone boxes”. This means there is no human needed in the loop to supervise the flight.

What this looks like in practice: The idea is to have a drone on-site to frequently perform the same task (e.g. surveying of an open-pit mine twice a week). The pre-programmed flight path stays the same, the drone is equipped with automated take-off and landing capabilities, the drone box gives shelter and the chance to recharge the batteries and automatically deploy the drone according to the given schedule.

Current Application Methods: mapping, surveying, and protection & security.

“The best way to understand the autonomy of drones is that it is a spectrum. If autonomy is a measure of independence from external influence and the level of self-governing, then different platforms can be autonomous but on a different point in the autonomy spectrum. “

Millie Radovic - DRONEII
Millie Radovic, Market Analyst at DRONEII

Level 4 – High Automation

The drone can be controlled by a person, but it doesn’t always need to be. It can fly itself full-time under the right circumstances. The drone is expected to have backup systems so that if one system fails, it will still be operational. Its behaviour depends upon a fixed built-in functionality or upon a fixed set of rules that dictate system behaviour. Here sense & avoid matures into sense & navigate.

What this looks like in practice: A drone equipped with a certain stack of sensors follows a person or an object. While doing this, it senses obstacles in the flightpath and actively avoids contact by changing heading and/or altitude. It literally finds a way to follow the task while automatically altering the way to do it.

Current Application Method: photography and filming.

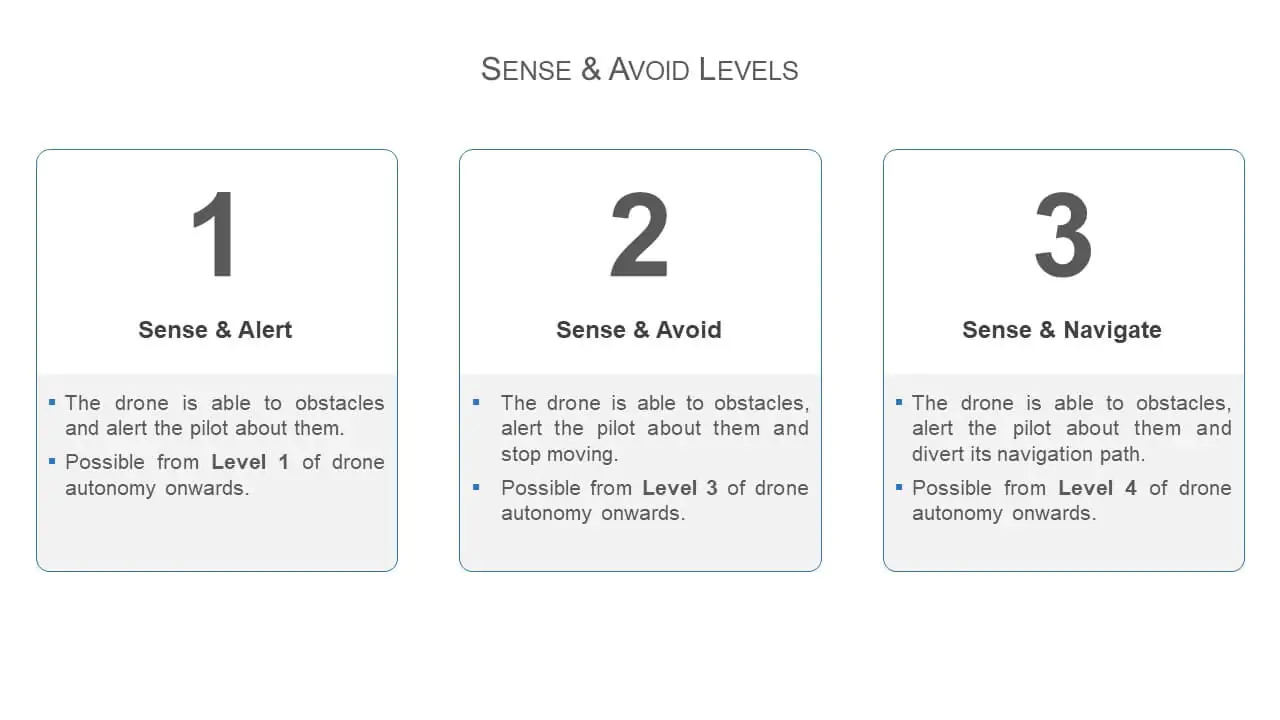

Autonomy & Obstacle Avoidance

Level 5 – Full Automation

The drone controls itself under all circumstances with no expectation of human intervention. This includes full-time automation of all flying tasks under any conditions.

There are no examples of such drones yet and they are not currently in production.

However, what they are expected to be able to do is use AI tools to plan their flights, in other words – autonomous learning systems with the ability to modify routine defining behaviours. Imagine if one day a Level 5 drone is built and tasked with monitoring sharks on a coastline. Each day the drone monitors the coastline, but most often there are problems in a certain area of its flight path. This drone will in its next flight be able to use the acquired knowledge to plan a flight to monitor that area first. Also important to bear in mind is that the 5th level of autonomy is the ticket to achieving two key goals in the drone industry: urban aerial mobility and large cargo delivery drones.

What’s next?

Don’t expect such smart drones in the air in the next year. Not only is there no regulatory base yet whatsoever to facilitate the 5th level of autonomy, but more importantly the legwork needed to achieve this level is significant – simply because of the frequency and volume of data, and the sophistication of the on-board computers crunching it that it will take. However, once this is done drones will be effectively sentient and able to save mounds of time in every single application category.

The 5 Levels of Drone Autonomy

The 5 Levels of Autonomy in the Drone Industry

Follow the link to download the free infographic, “The 5 Levels of Drone Autonomy”.
